SlideDraw API

Notes

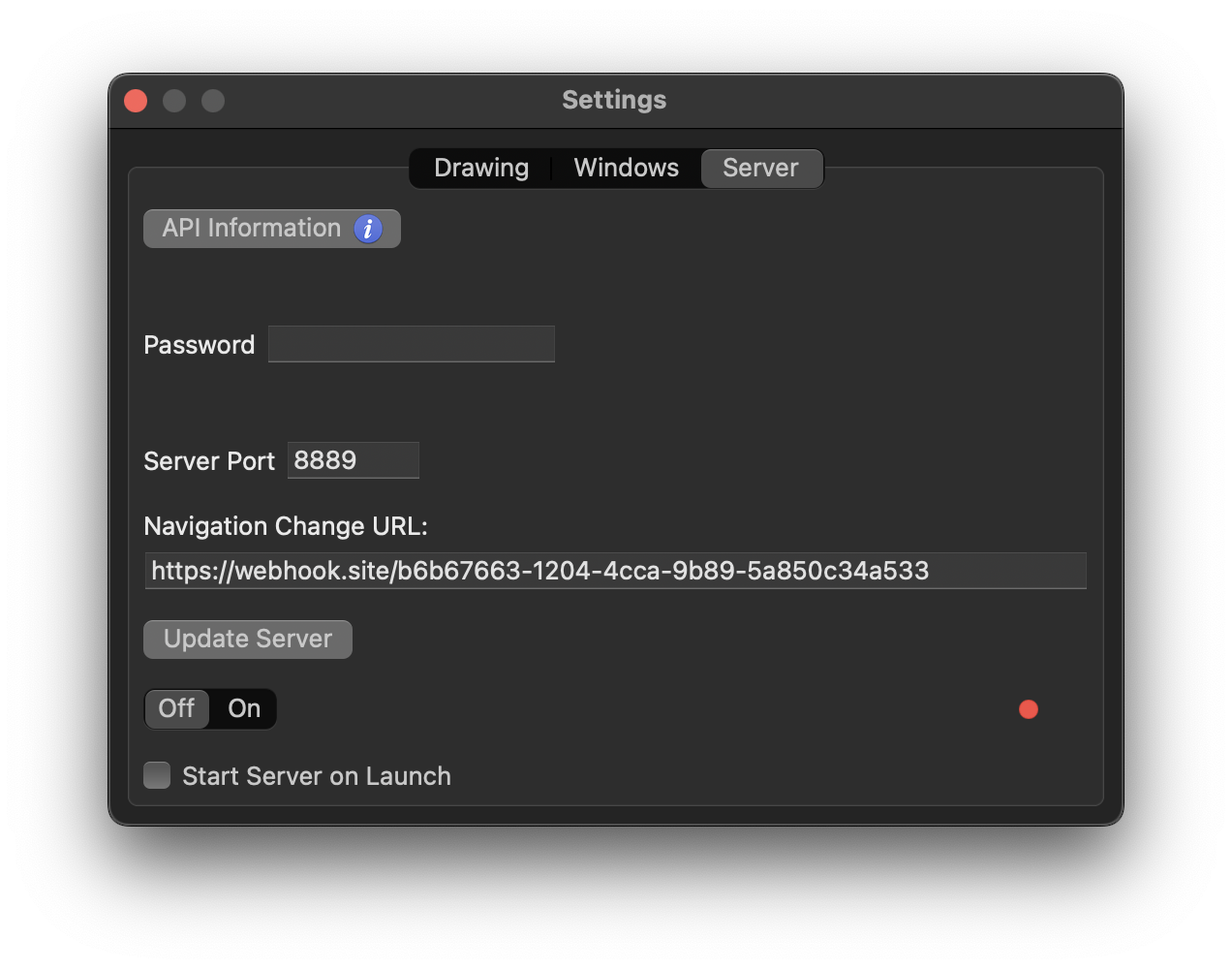

• The HTTP Web server runs by default on port 8889 (TCP).
• Your server password must be used in your requests as an HTTP Header parameter.

  { "password": "mypassword" }

• HTTPS is not supported.

Endpoints

#website of current slides. Auto re-refreshes.
GET  /slides

# JSON of all slides
GET  /api/slides

# does a clear all slides
POST /api/slides/clear

# does a clear all and goes to first
POST /api/slides/reset

POST /api/slides/first
POST /api/slides/last

# enter a slide number to go to, 1 being first
POST /api/slides/2/show

POST /api/slides/previous
POST /api/slides/next

# select drawing window and moves mouse to center of it
POST /api/control/reset-mouse

# hide the mouse cursor
POST /api/control/hide-cursor

# show / unhide the mouse cursor
POST /api/control/show-cursor

# toggle drawing window fade
POST /api/control/fade-window

Examples

Bitfocus Companion

Questions?

Please reach out to us via a support ticket or [e-mail] for questions. We are here to help!
