Document version 25.1
Requirements
- Must have a server on and the Presets Engine module enabled (via an In-App Purchase).
- Presets called by the API must exist on the same Mac that the Server is on. If using Preset built on another LiveTime Mac, please use the export/import Preset functions.
- The server password must be enabled.
- If using a Server-to-Server environment, please note that the API has not been fully validated.
- API must be turned on in Live Time preferences.
Notes
- The HTTP Web server runs on port 1909 (TCP).
- Your server password must be used in your requests as an HTTP Header parameter.
{ "password": "mypassword" }
- HTTPS is not supported.
Endpoints
General
# Shows all API routes
GET /api/info
# Disconnect from a server if you are a server. (Server to Server Mode)
POST /api/connection/disconnect
Timers
# Use main or aux for the different timer
# Example /api/timer/main/... or /api/timer/aux/..
POST /api/timer/<timerName>/start
POST /api/timer/<timerName>/stop
POST /api/timer/<timerName>/reset?start=true
POST /api/timer/<timerName>/reset?start=false
# Using entry as seconds:
POST /api/timer/<timerName>/start?time=90
POST /api/timer/<timerName>/start?time=90&countmode=up
POST /api/timer/<timerName>/start?time=90&countmode=down
POST /api/timer/<timerName>/add?time=90
POST /api/timer/<timerName>/subtract?time=90
# Using entry as HH:MM::SS
# You must query URI encode the colon to %3A
# Example 15:30:00 becomes 15%3A30%3A00
POST /api/timer/<timerName>/start?time=15%3A30%3A00
POST /api/timer/<timerName>/start?time=15%3A30%3A00&countmode=up
POST /api/timer/<timerName>/start?time=15%3A30%3A00&countmode=down
POST /api/timer/<timerName>/add?time=15%3A30%3A00
POST /api/timer/<timerName>/subtract?time=15%3A30%3A00
# Count to a specific time of day using count_to_time
POST /api/timer/<timerName>/start?countmode=count_to_time&time=15%3A30%3A00
# Shows current time of day
POST /api/timer/<timerName>/start?countmode=current_time
Overlay
POST /api/overlay/show
POST /api/overlay/hide
Presets POST /api/presets/:presetId/restore POST /api/presets/previous POST /api/presets/next
Examples
Restore a Preset number 4
POST http://localhost/api/presets/4/restore
Header: { "password": "mypassword" }
Curl:
curl -H "password: test" -X POST http://localhost:1909/api/presets/4/restore/

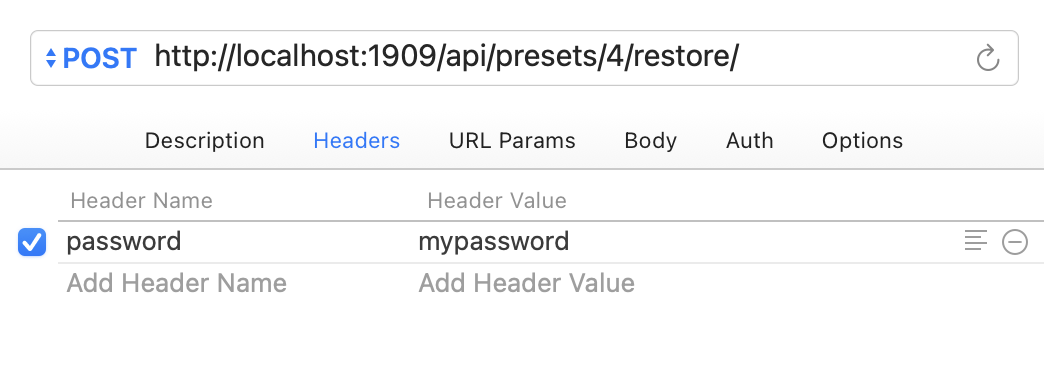

Rest Client

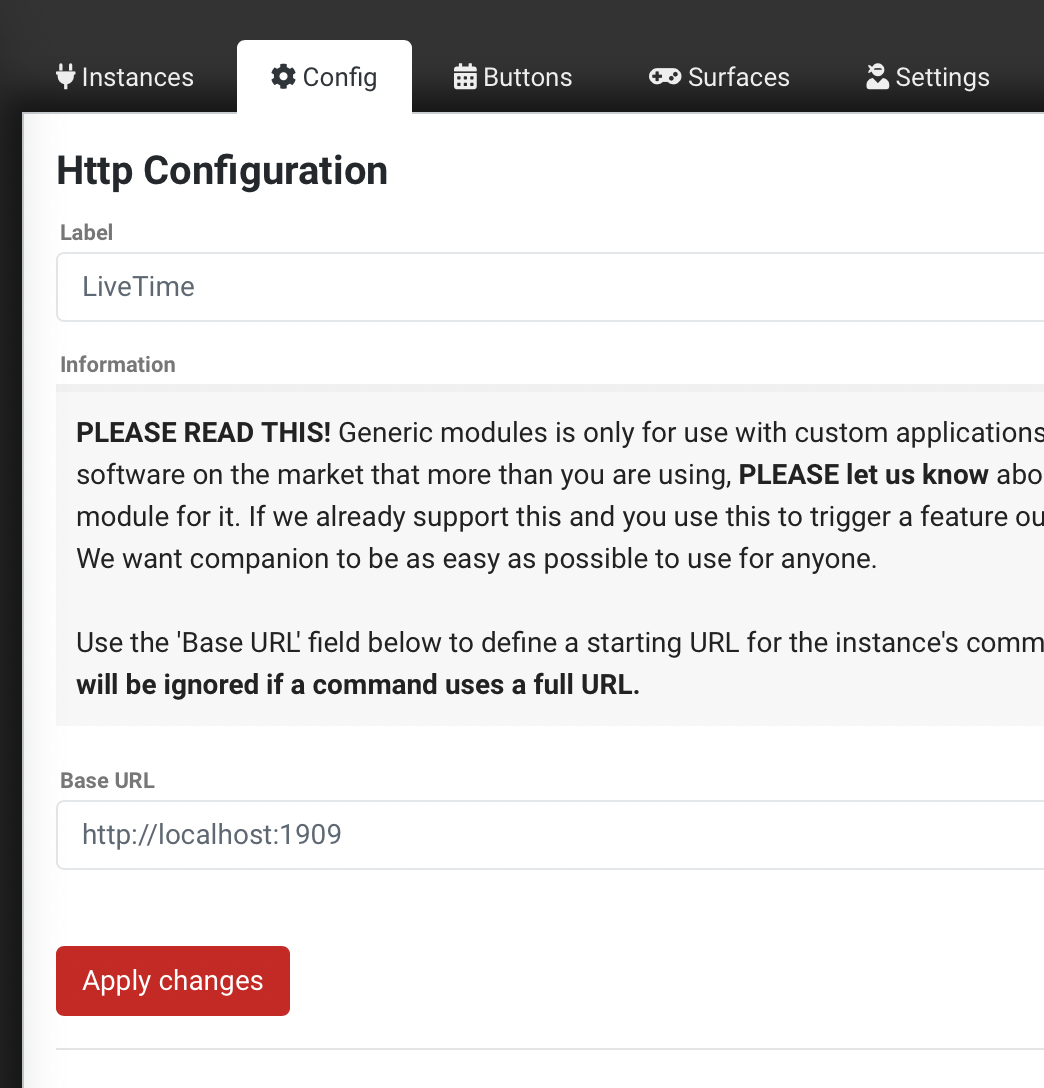

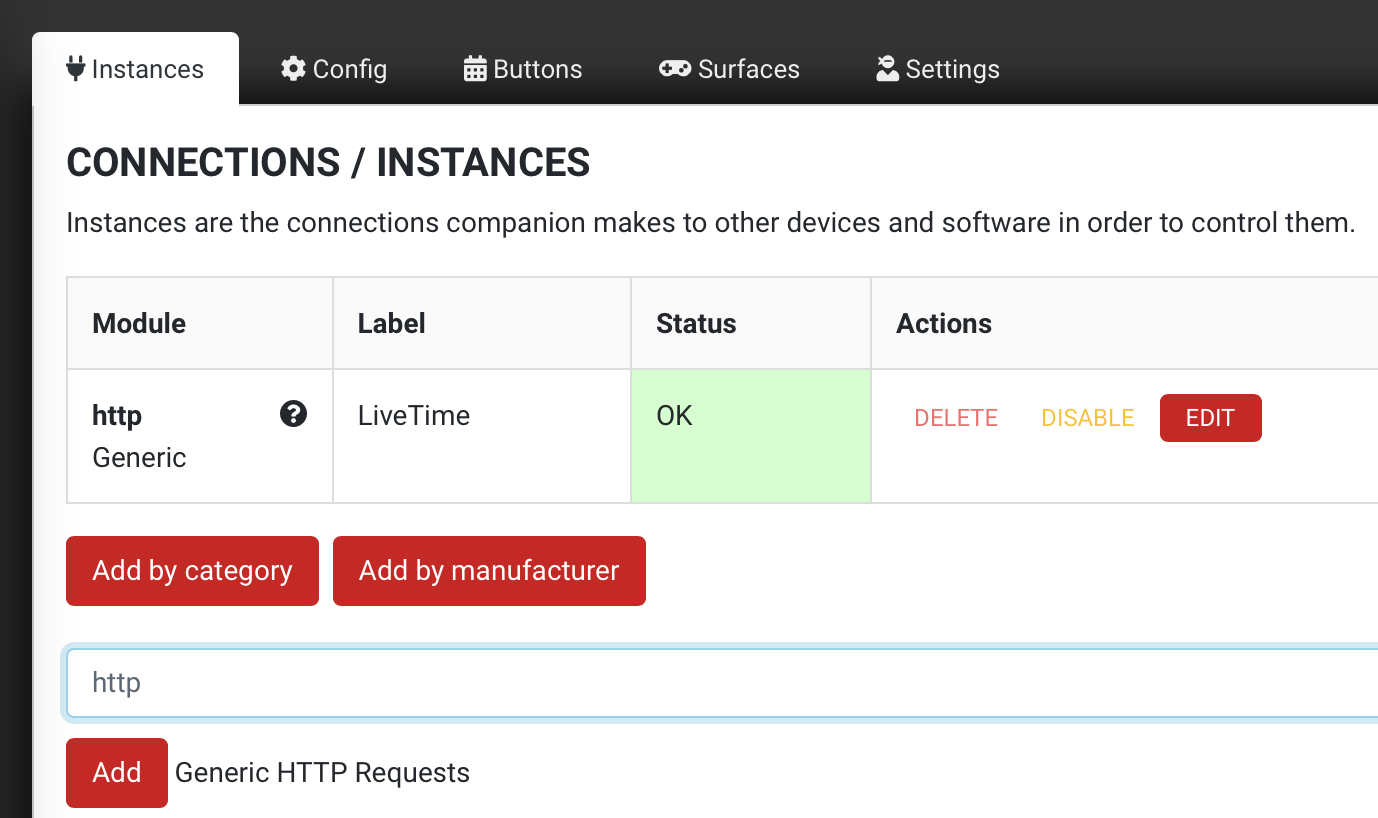

Bitfocus Companion
- Add Generic HTTP Request
- Add your LiveTime Server's IP or hostname with port 1909.
3. Add your button / action configuration.
Questions?
Please reach out to us via a support ticket or support@workflownetwork.com for questions. We are here to help!
